COMPACT RADIANT AND FANCOIL KIT

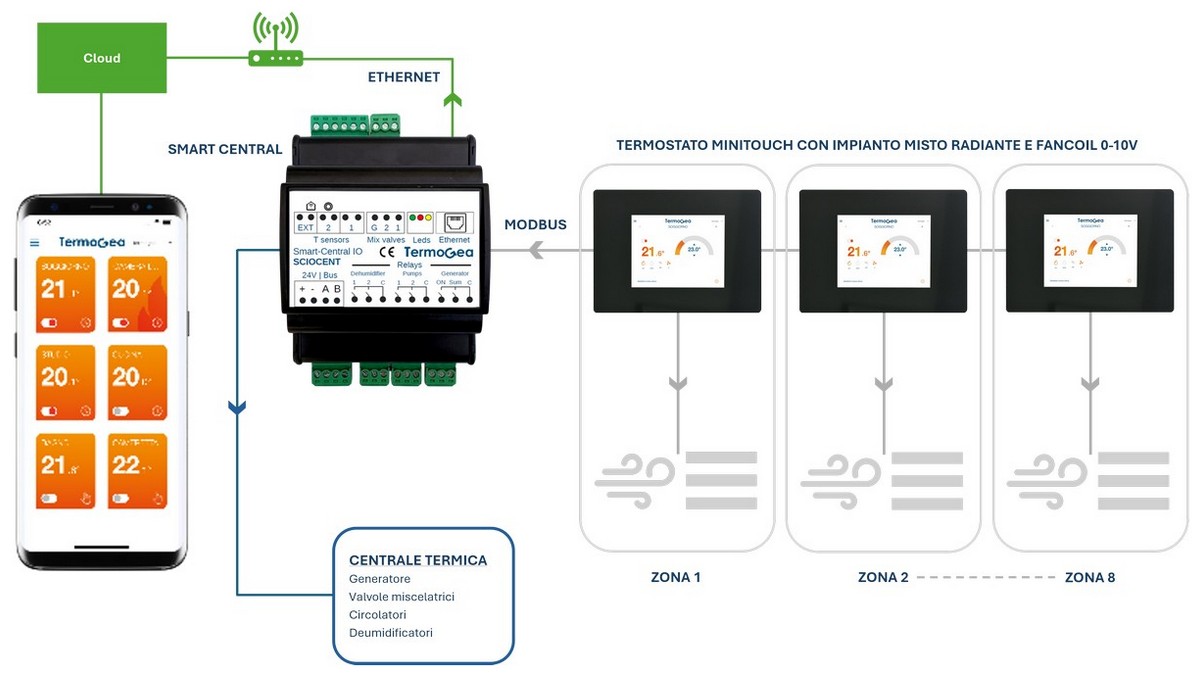

The kit includes the Smart Central unit and the Minitouch thermostats placed in each zone. Smart Central is a Plug & Play system. With built-in software, it identifies the number and type of sensors used during the first startup of the system. No configuration is required. With this system we can control the radiant system for heating and the fan coils (0-10V) for cooling in each zone through the thermostat. In particular, the relay output of the Minitouch is used for the radiant head and the 0-10V output for the fan coil. In addition to temperature control, humidity control is also carried out. This thermostat mounts humidity probes. The Minitouch thermostat is designed for mounting on a 503 box. On the Smart Central module, on the other hand, there are outputs for the dehumidifier.
| PRODUCT | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Smart Central Climate Control Unit | |||||||||
| Mini Touch thermostat | |||||||||
| Power Supply 30W | |||||||||
| Modbus cable 100m |
