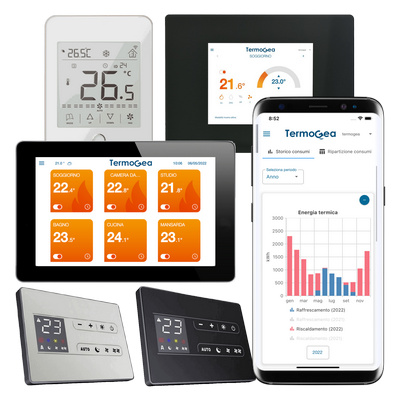

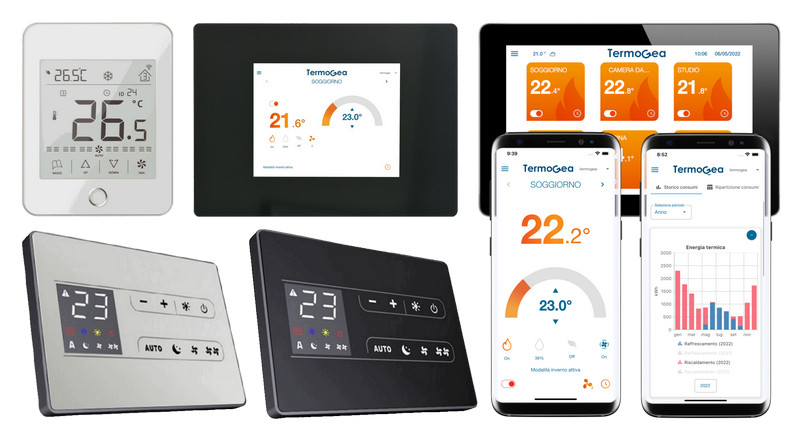

Termogea smart thermostats are advanced devices that allow for more flexible and efficient temperature regulation in environments compared to traditional thermostats. They connect to the Termogea cloud via the internet and can be controlled remotely through the Termogea app. These thermostats can also be controlled by voice commands, using virtual assistants such as Google Assistant, Amazon Alexa, and Siri. Termogea smart thermostats provide energy consumption statistics that help make more informed decisions to reduce costs. With these thermostats, it is possible to track personal habits to optimize energy use, maintain comfort and save on energy consumption.

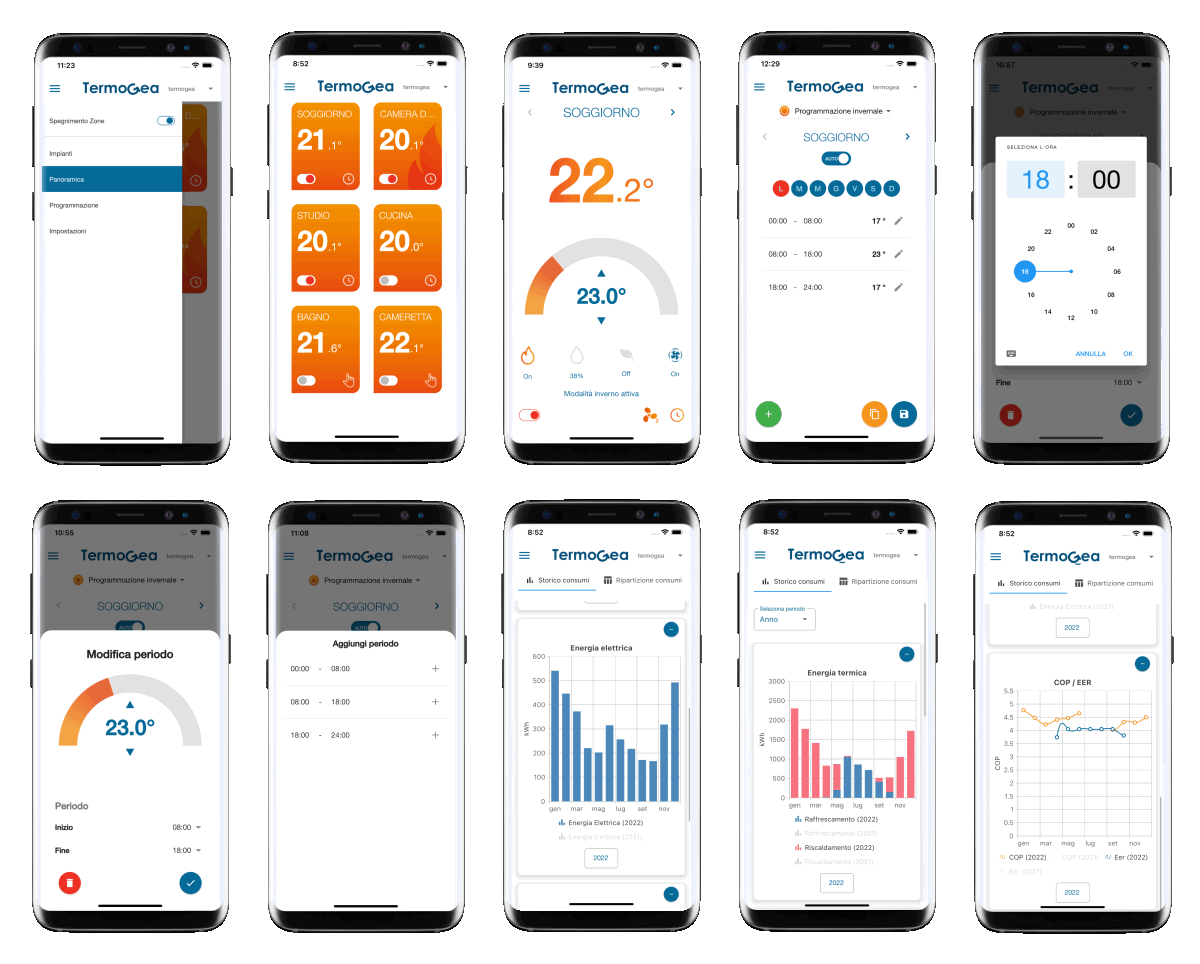

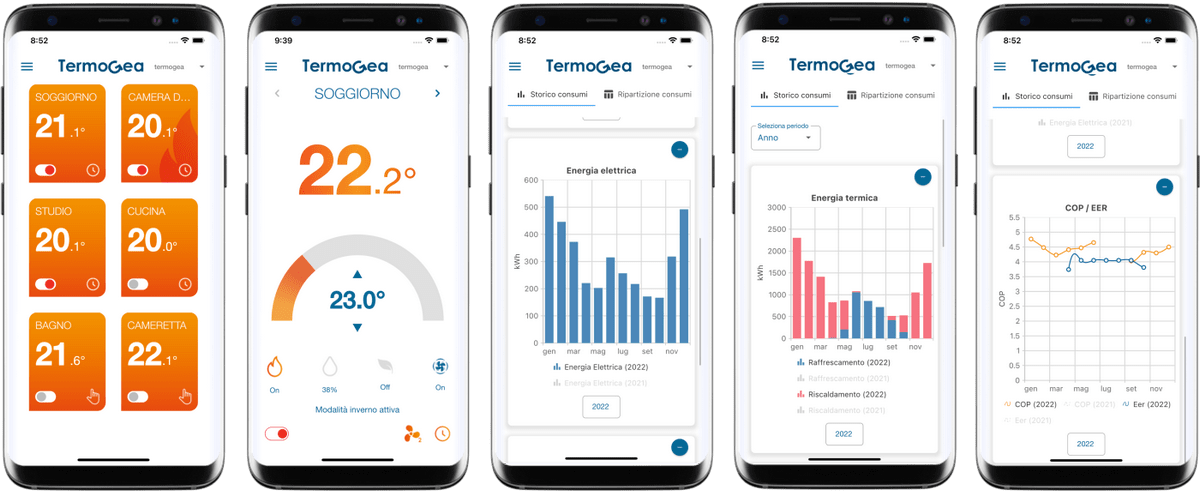

TERMOGEA APP IOS & ANDROID
Termogea APP turns your phone into a personal digital thermostat. This way, you can control your home at any time and from anywhere. The control panel for the heating and cooling system is your smartphone.
Remotely, it is possible to:
- Set the desired temperature values for each room.
- Turn the system on or off.
- Program the time slots for the activation and deactivation of heating, cooling, dehumidification, and controlled mechanical ventilation units.

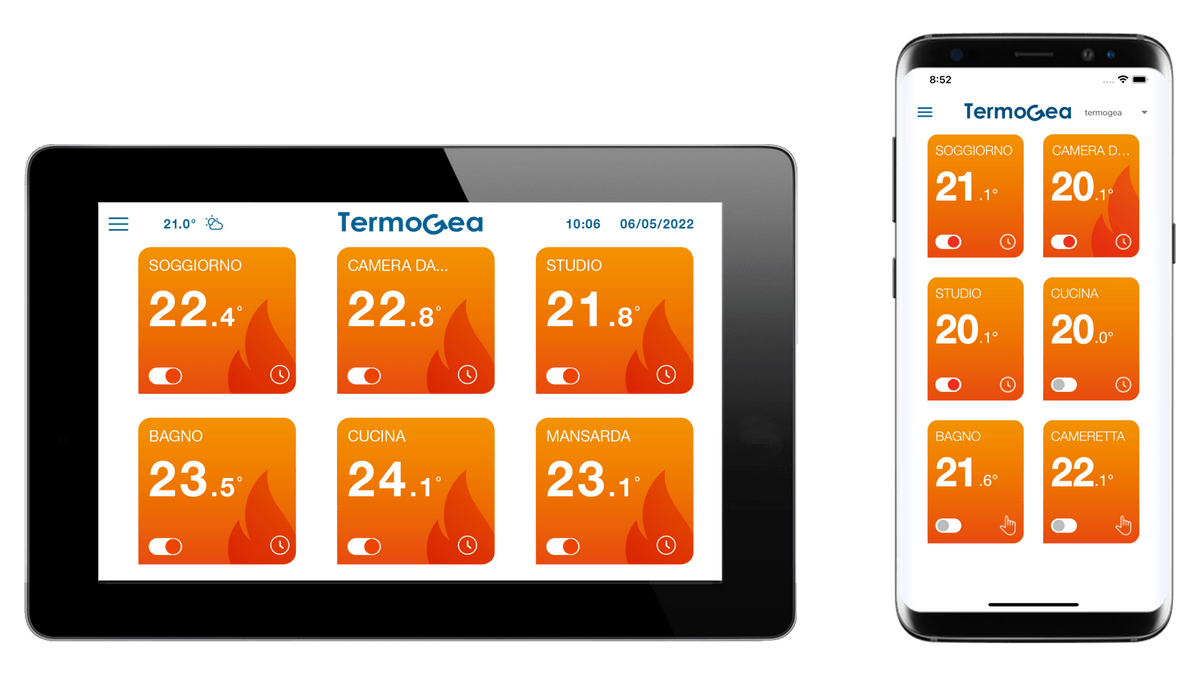

TOUCH PANEL WALL MOUNTED
7″ LCD Touch screen control panel with a resolution of 800×480 pixels. From here, you can manage the temperature regulation of multiple climatic zones. It is therefore possible to intervene on heating, cooling, humidity, air quality, and on the Controlled Mechanical Ventilation units.
Features:
- Heating, cooling, and dehumidification.
- Indication of the energy efficiency level of each area.
- Programming of Controlled Mechanical Ventilation.
- Time Scheduling.
- Seasonal change.
- On-Off zone climatiche.
- Stato di funzionamento.
- Controllo multizona.
- Set-point temperatura.
- Misura temperatura e umidità.
- Menu con funzioni per lìnstallatore protetto da password.
- Montaggio su scatola Touch Box.
| NOME | CODICE | DESCRIZIONE |
|---|---|---|
| Touch Panel multizona | LCD7WT | Touch Panel da muro. Pannello di controllo multizona Touch screen LCD da 7’’ con risoluzione 800×480 pixel. Riscaldamento, raffrescamento e deumidificazione. Programmazione Temperatura e Ventilazione Meccanica Controllata. Cambio stagione. Grafici dati. |

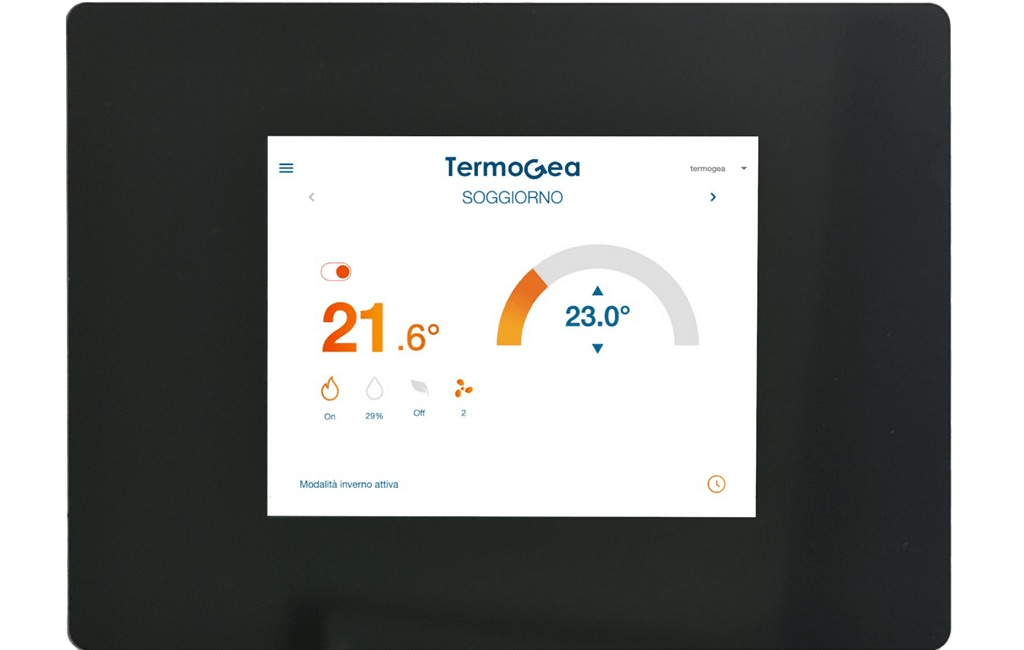

MINI TOUCH THERMOSTAT
Touch control panel with integrated sensor for temperature and humidity detection. Equipped with a relay that allows it to function as an ambient thermostat. The 0-10V output enables control of fan coil units with inverters. It connects to the Termogea system via the Modbus cable. Mounting on a 503 box.
| NOME | CODICE | DESCRIZIONE |
|---|---|---|
| Termostato Mini-Touch | LCDTO-7710-LIGHTT | Termostato Mini-Touch con sonda T/H. Interfaccia Modbus. Full-glass touch 3,2". Controllo radiante e fancoil 0-10V. Controllo tramite APP. Ingressi: sonda di minima, "finestra" e "presenza". Montaggio su standard 502/503. Alimentazione 24VDC. |

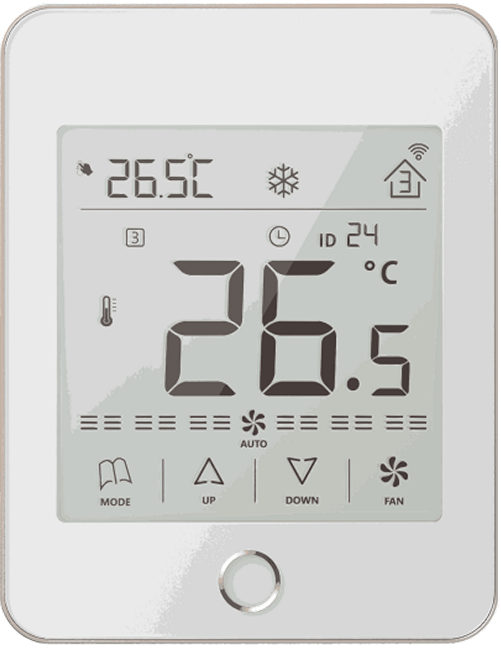

ROOM THERMOSTAT
LCD digital thermostat wall mounted on 503 box for managing one climatic zone.
The control panel is equipped with M-bus communication protocol and temperature probe. Bus communication to the Climate Control Unit integrates the panel into a complete temperature control system. This thermostat can monitor and control heating and cooling temperatures. Room can also be controlled remotely via APP.
- Heating andCooling.
- On-Off the System.
- Working status.
- Temperature set-point.
- Temperature measurement.
- Speed management.
- Control via smartphone.
- Wall mounting on 503 box.
| NOME | CODICE | DESCRIZIONE |
|---|---|---|
| Termostato Room | LCD-503V-TT | Termostato digitale touch LCD da parete a incasso su scatola 503 verticale. Interfaccia Modbus. Sonda T. 4 x uscite relè per fancoil a 3 velocità. Valvola bypass. Termostato controllabile tramite APP/Centralina Termogea. Alimentatore 230V. |

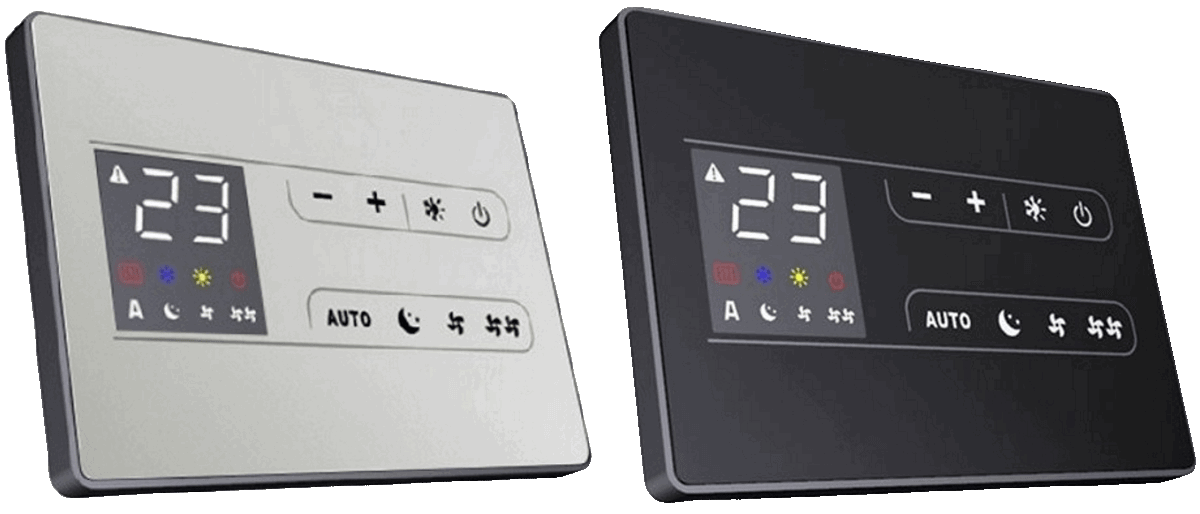

ROOM PANEL
Wall-mounted or recessed thermostat equipped with Modbus communication protocol and temperature probe, capable of managing the climate regulation of one zone. The bus communication to the Climate Control Unit integrates the panel into a complete climate control system. This system is capable of managing heating and cooling remotely via app.
- Heating andCooling.
- On-Off the System.
- Working status.
- Temperature set-point.
- Temperature measurement.
- Speed management.
- Control via smartphone.
- Wall mounting on 503 box.
| NOME | CODICE | DESCRIZIONE |
|---|---|---|
| Pannello Room 12V-Bianco | LCD-503T-12BT | Pannello con sonda T. Interfaccia Modbus. Display. Per impianti di riscaldamento e raffrescamento. Controllabile tramite centralina e APP Termogea. |
| Pannello Room 12V-Nero | LCD-503T-12NT | Pannello con sonda T. Interfaccia Modbus. Display. Per impianti di riscaldamento e raffrescamento. Controllabile tramite centralina e APP Termogea. Alimentatore 12V. |
